Understanding S2I pipelines

S2I is a process to build images from source code.

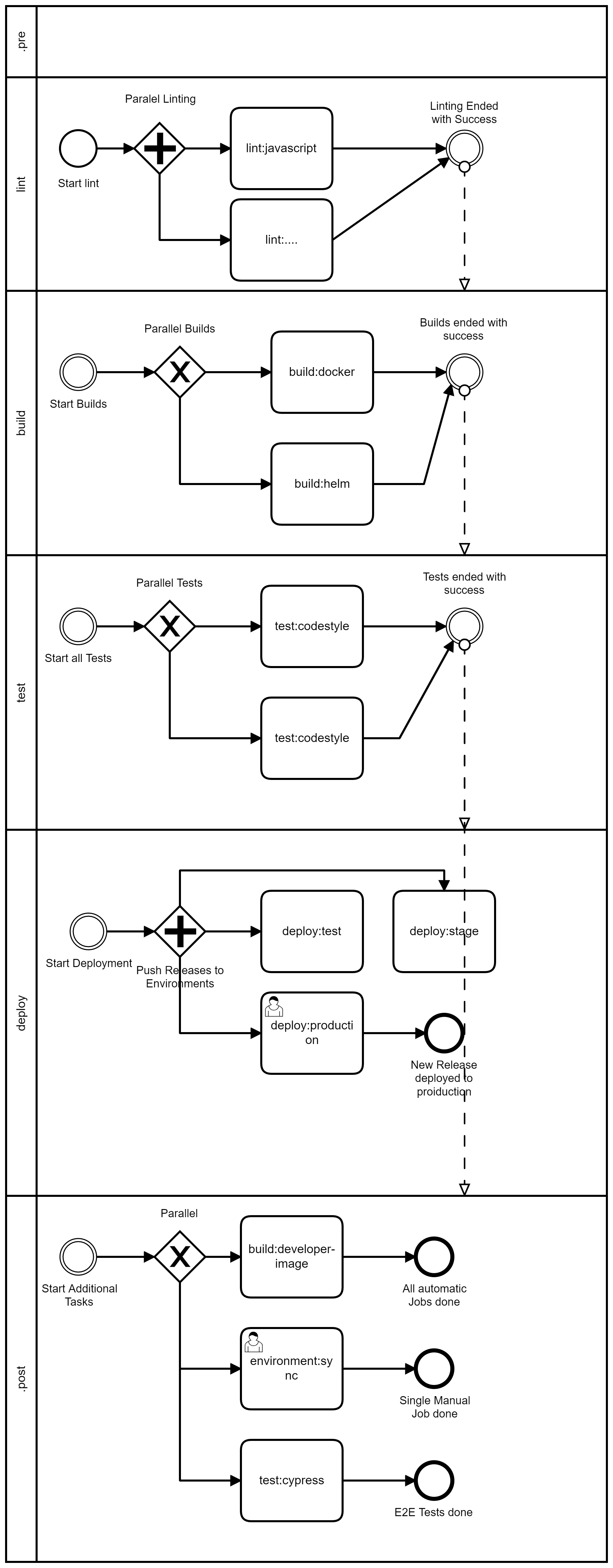

Example Overview of a S2I Pipeline

The pipeline will iterate through the stages in GitLab and stop execution on error.

.

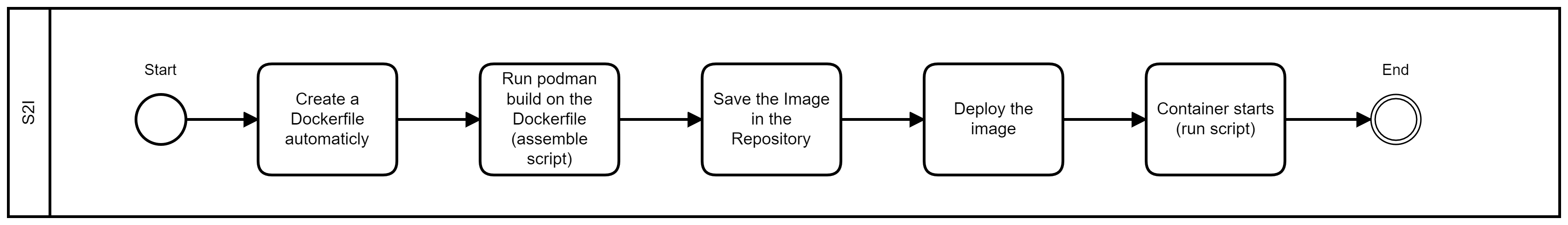

How a pipeline uses S2I Builds

• General documentation
• Specific documentation for PHP

.

S2I Introduction Video

Usage

• Create a new project with a node source code in the root.
• Create GitLab pipeline file .gitlab-ci.yml:

include:
- component: $CI_SERVER_FQDN/xrow-public/ci-tools/common@stable
- component: $CI_SERVER_FQDN/xrow-public/ci-tools/s2i@stable
  inputs:
    name: myapplication
    type: nodejs
    image: registry.access.redhat.com/ubi10/nodejs-22:10.0-1761020302
    path: .

Inputs

Name	Description	Default	Type
---	---	---	---
args			string
containerfile-path	Alternate path to the Containerfile, if either Dockerfile or Containerfile in the conect directory.		string
dependencies	The dependencies that this job depends on.	[]	array
export-enabled	Should the source code in the working dir be exported as artifacts?	false	string
export-source-path	Export source path inside the container, if export-enabled is true.	/opt/app-root/src	string
image	Base container image from the Red Hat image catalog to use as S2I builder image.		string
name		container	string
needs	The jobs that this job depends on.	[]	array
path	Path to the directory containing Container sources / context.	.	string
rules	The jobs that this job depends on.	[{"if":"$CI_PIPELINE_SOURCE == \"schedule\"","when":"never"},{"if":"$CI_PIPELINE_SOURCE == \"merge_request_event\"","when":"on_success"},{"when":"on_success"}]	array
scanners	Scanners to use. none, vuln, license, secret, misconfig	["vuln","secret","license","misconfig"]	array
scanning-allow-failure	Should the pipeline fail if scanning the built container image fails?	false	boolean
scanning-enabled	Should the built container image be scanned?	true	boolean
scanning-severity	What level of severity should cause scanning of the built container to fail?	CRITICAL	string
scanning-timeout	How long should the scanning process be allowed to run before timing out? Use format e.g. 5m0s		string
stage	The pipeline stage that the jobs belongs to.	build	string
tags	The runners that this job depends on.	[]	array
type		nodejs	string
version	Internal version of the nested component to use.	main	string
